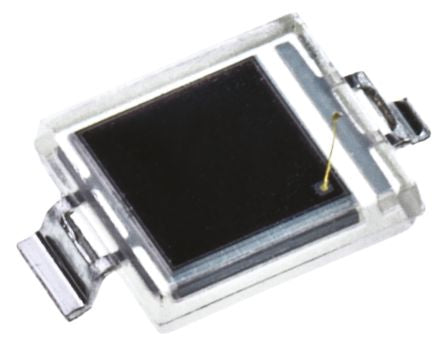

Osram Opto BPW 34 S-Z IR + Visible Light Si Photodiode, 60 °, Surface Mount DIP [BPW 34 S-Z]; 652-0207
0₫
Mã kho: 6520207
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Spectrums Detected | Infrared, Visible Light |
| Wavelength of Peak Sensitivity | 850nm |
| Package Type | DIP |
| Mounting Type | Surface Mount |
| Number of Pins | 2 |
| Diode Material | Si |
| Minimum Wavelength Detected | 400nm |
| Maximum Wavelength Detected | 1100nm |
| Length | 4.5mm |
| Width | 4mm |
| Height | 1.2mm |
| Angle of Half Sensitivity | 60 ° |
| Peak Photo Sensitivity | 0.62A/W |
| Polarity | Reverse |
