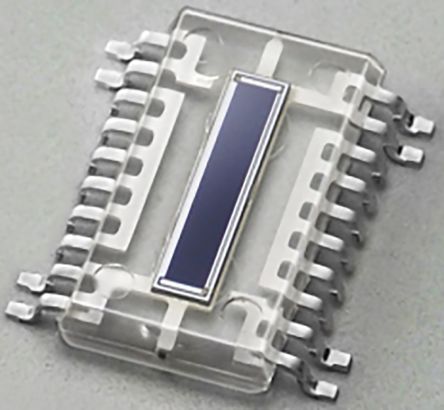

Hamamatsu S5629 IR Photodiode, Surface Mount SMD [S5629]; 124-7165
0₫
Mã kho: 1247165
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Spectrums Detected | Infrared |
| Wavelength of Peak Sensitivity | 960nm |
| Package Type | SMD |
| Mounting Type | Surface Mount |
| Number of Pins | 20 |
| Minimum Wavelength Detected | 760nm |
| Maximum Wavelength Detected | 1100nm |
| Length | 9.7mm |
| Width | 5.4mm |
| Height | 1.7mm |
| Typical Rise Time | 5µs |
| Peak Photo Sensitivity | 0.51A/W |
| Series | S5629 |
| Polarity | Positive |
