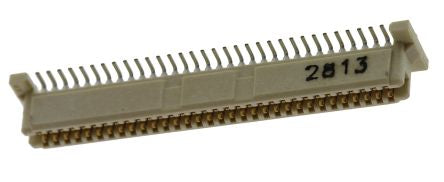

Molex PMC Mezzanine Series 71439 Series Number 1mm Pitch 64 Way 2 Row Straight Edge Connector, Surface Mount [71439-0164]; 447-7195
by Molex
0₫
Mã kho: 4477195
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 64 |
| Number of Rows | 2 |
| Pitch | 1mm |
| Type | Board to Board |
| Mounting Type | Surface Mount |
| Body Orientation | Straight |
| Termination Method | Solder |
| Current Rating | 1A |
| Voltage Rating | 100 V |
| Series | PMC Mezzanine |
| Contact Material | Phosphor Bronze |
| Series Number | 71439 |
