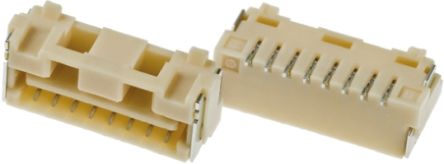

Molex CLIK-MATE Series 502382 Series Number 1.25mm Pitch 8 Way 1 Row Straight PCB Socket, Surface Mount [502382-0870]; 161-9578
by Molex
0₫
Mã kho: 1619578
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 8 |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Type | Wire to Board |
| Mounting Type | Surface Mount |
| Body Orientation | Straight |
| Termination Method | Solder |
| Current Rating | 1A |
| Voltage Rating | 50 V ac/dc |
| Series | CLIK-Mate |
| Contact Material | Copper Alloy |
| Series Number | 502382 |
