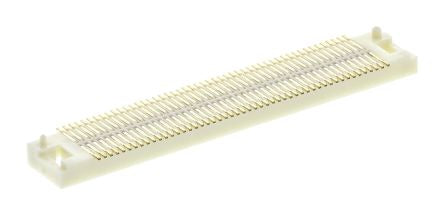

Hirose FunctionMAX FX8 Series 0.6mm Pitch 100 Way 2 Row Straight PCB Socket, Surface Mount, Solder Termination [FX8-100S-SV(21)]; 122-1661
by Hirose
0₫
Mã kho: 1221661
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 100 |
| Number of Rows | 2 |
| Pitch | 0.6mm |
| Type | Board to Board |
| Mounting Type | Surface Mount |
| Body Orientation | Straight |
| Termination Method | Solder |
| Current Rating | 400mA |
| Voltage Rating | 100 V ac |
| Series | FunctionMAX FX8 |
| Contact Material | Phosphor Bronze |
