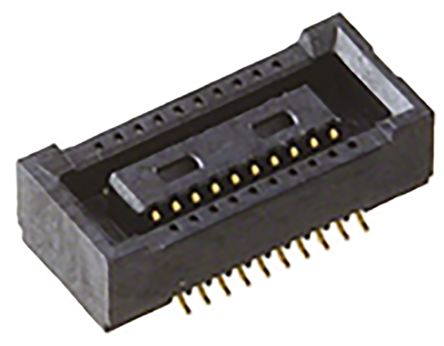

Hirose DF40 Series 0.4mm Pitch 20 Way 2 Row Straight PCB Socket, Surface Mount, Solder Termination [DF40C-20DS-0.4V(58)]; 772-6718
by Hirose
0₫
Mã kho: 7726718
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 20 |
| Number of Rows | 2 |
| Pitch | 0.4mm |
| Type | Board to Board, Board to FPC |
| Mounting Type | Surface Mount |
| Body Orientation | Straight |
| Termination Method | Solder |
| Current Rating | 300mA |
| Voltage Rating | 30 V ac/dc |
| Series | DF40 |
| Contact Material | Copper Alloy |
