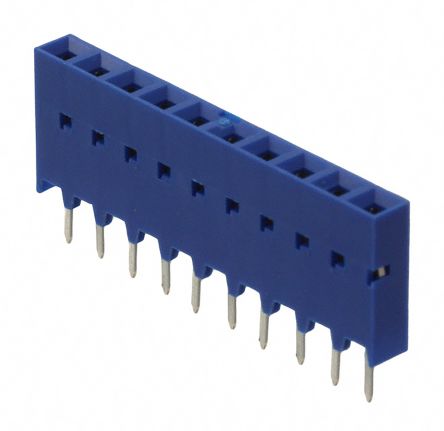

Amphenol FCI DUBOX Series 75915 Series Number 2.54mm Pitch 10 Way 1 Row Straight PCB Socket, Through Hole [75915-310LF]; 863-3447
by Amphenol FCI
0₫
Mã kho: 8633447
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 10 |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Type | Board to Board |
| Mounting Type | Through Hole |
| Body Orientation | Straight |
| Termination Method | Solder |
| Current Rating | 2 (Per Contact/Full Load) A, 3 (Per Contact) A |
| Voltage Rating | 1 kV ac |
| Series | DUBOX |
| Contact Material | Phosphor Bronze |
| Series Number | 75915 |
