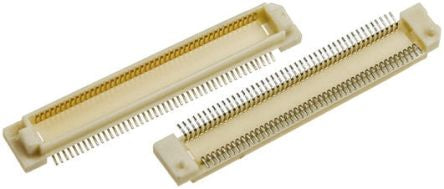

Hirose, FunctionMAX FX8, 80 Way, 2 Row, Straight PCB Header [FX8-80P-SV1(91)]; 688-3426
by Hirose
0₫
Mã kho: 6883426
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | FunctionMAX FX8 |
| Pitch | 0.6mm |
| Number of Contacts | 80 |
| Number of Rows | 2 |
| Body Orientation | Straight |
| Connector System | Board to Board |
| Mounting Type | Surface Mount |
| Termination Method | Solder |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold |
| Current Rating | 400mA |
