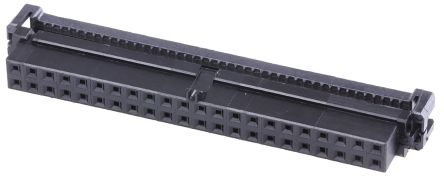

TE Connectivity 44-Way IDC Connector Socket for Cable Mount, 2-Row [2-111623-5]; 164-3169
0₫
Mã kho: 1643169
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 44 |
| Number of Rows | 2 |
| Gender | Female |
| Pitch | 2.0mm |
| Mounting Type | Cable Mount |
| Body Orientation | Straight |
| Termination Method | IDC |
| Current Rating | 500mA |
| Contact Plating | Gold, Palladium Nickel |
| Series | AMP-LATCH |
| Minimum Operating Temperature | -65.0°C |
| Maximum Operating Temperature | 105.0°C |
| Voltage Rating | 125.0 V ac |
| Housing Material | PET |
| Contact Material | Phosphor Bronze |
