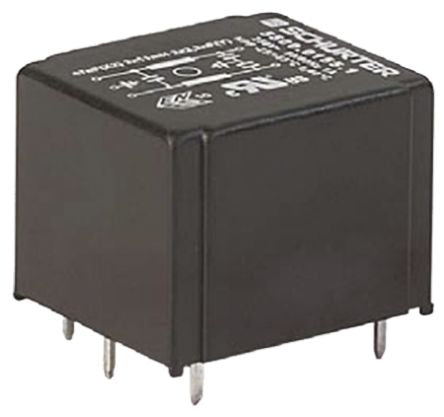

Schurter 5500 Series 10A 250 V ac 50 → 60Hz RFI Filter, with PC Pin Terminals [5500.1055.1]; 782-3992
by Schurter
0₫
Mã kho: 7823992
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 10A |
| Maximum Voltage Rating | 250 V ac |
| Termination Style | PC Pin |
| Number of Stages | Single Stage |
| Series | 5500 |
| Operating Frequency | 50 → 60Hz |
| Length | 30mm |
| Depth | 26.6mm |
| Capacitance | 2.2 nF, 47 nF |
| Height | 23.2mm |
| Inductance | 0.3 x 2 mH |
| Dimensions | 30 x 26.6 x 23.2mm |
| Minimum Operating Temperature | -25°C |
| Leakage Current | < 0.5 mA |
| Maximum Operating Temperature | +85°C |
| Standards Met | UL 1283 |
