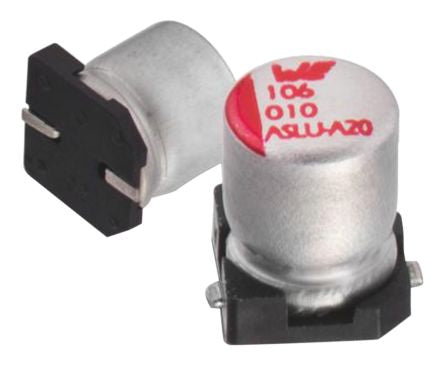

Wurth Elektronik 10μF 10V dc Aluminium Electrolytic Capacitor, Surface Mount 5.5 (Dia.) x 3.85mm +85°C 5.5mm 1mm [865090240001]; 163-5756
0₫
Mã kho: 1635756
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 10 µF |
| Voltage | 10 V dc |
| Mounting Type | Surface Mount |
| Technology | Electrolytic |
| Dimensions | 5.5 (Dia.) x 3.85mm |
| Height | 3.85mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 5.5mm |
| Maximum Operating Temperature | +85°C |
| Lifetime | 1000h |
| Lead Pitch | 1mm |
| Series | WCAP-ASLU |
| Ripple Current | 23mA |
| Polarised | Polar |
| Leakage Current | 0.4 μA |
| Tolerance | ±20% |
| Dissipation Factor | 22 |
