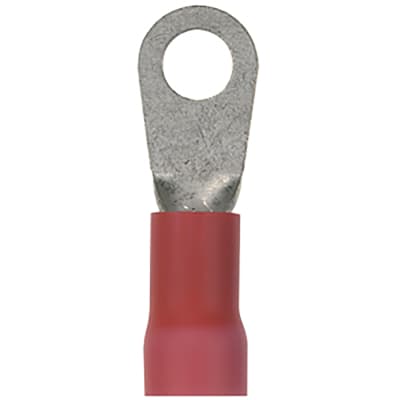

Wire Termination / Terminals Terminal Kits / Ring Terminals: Panduit PV8-8R-TY
MÔ TẢ SẢN PHẨM
Ring Terminal, large wire, 8 AWG, #8 stud size, vinyl insulated, bulk package.
HƯỚNG DẪN MUA HÀNG qua Điện thoại / Email
Website đang trong giai đoạn xây dựng. Thông tin liên hệ: tổng đài 0898.332.898 hoặc E-mail: Sales@nguyenxuong.com
HƯỚNG DẪN MUA HÀNG qua Điện thoại / Email
. Thông tin liên hệ: tổng đài 0898.332.898 hoặc E-mail: Sales@nguyenxuong.com
Wire Termination / Terminals Terminal Kits / Ring Terminals: Panduit PV8-8R-TY
Ring Terminal, large wire, 8 AWG, #8 stud size, vinyl insulated, bulk package.
Note | PV8-8R-TY replaces PV8-8R-T |
Stud Hole Size (In.) | 1/6 |
Stud Hole Size (mm) | 4.3 |
Stud Size | #8 |
Insulation Material | Vinyl |
Maximum Copper Conductor Size (AWG SOL) | #8 |
Maximum Copper Conductor Size (AWG STR) | #8 |
Maximum Copper Conductor Size (AWG) | #8 |
Maximum Wire Size (AWG) | #8 |
Minimum Wire Size (AWG) | #8 |
Minimum Copper Conductor Size (AWG SOL) | #8 |
Minimum Copper Conductor Size (AWG STR) | #8 |
Minimum Copper Conductor Size (AWG) | #8 |
Wire Strip Length (In.) | 0.38 |
Wire Strip Length (mm) | 9.5 |
Standards Met | UL Listed 587H E52164 |
Base Material | Copper |
Maximum Voltage (V) | 221 |
Maximum Voltage (kV) | 105 |
Finish/Coating | Tin-Plated |
Color Code | Red |
Barrel Type | Funnel |
Barrel Length (In.) | 0.65 |
Barrel Length (mm) | 16.5 |
Flammability Rating | UL 94 V-0 |
Insulation Diameter (In.) | 0.28 |
Insulation Diameter (mm) | 7.1 |
Maximum Operating Temperature (°C) | 105 |
Maximum Operating Temperature (°F) | 221 |
Maximum Wire Insulation Diameter (In.) | 0.28 |
Maximum Wire Insulation Diameter (mm) | 7.1 |
Outer Diameter (In.) | 0.28 |
Outer Diameter (mm) | 7.1 |
Sub Brand | Pan-term |
Overall Length (In.) | 1.51 |
Overall Length (mm) | 38.4 |
Overall Width (In.) | 0.42 |
Overall Width (mm) | 10.7 |
Tongue Length (In.) | 0.86 |
Tongue Length (mm) | 21.8 |
Tongue Thickness (In.) | 0.04 |
Tongue Thickness (mm) | 1 |
Tongue Width (In.) | 0.42 |
Tongue Width (mm) | 10.7 |
Packaging Type | Box |
Product Type | Loose Piece Ring Terminal |
For Use With | CT-720 (CD-720PV8-2); CT-2600 (CD-2600-PV8) |
Part Features | • Ring tongue design assures a secure connection in high vibration applications • Insulation support helps to prevent wire damage in bending applications • Internal barrel serrations assure good wire contact and maximum tensile strength |
