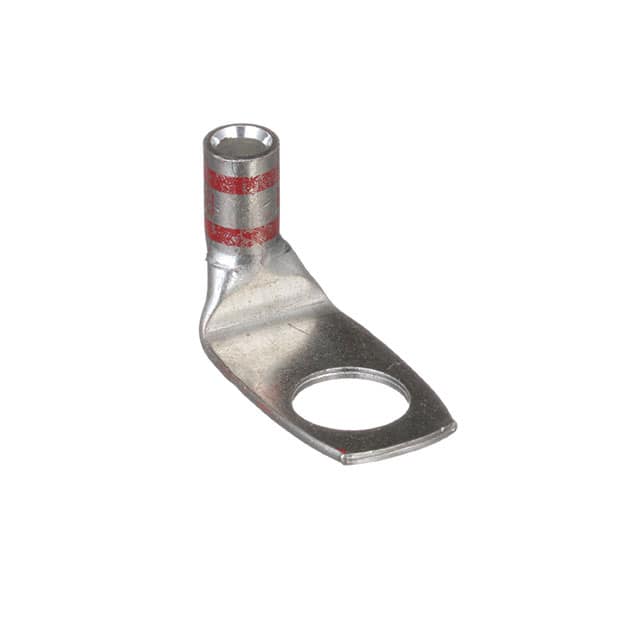

![Panduit lugs [LCAS8-38F-L], PAE880](http://nguyenxuong.com/cdn/shop/products/MFG_LCAS8-38F-L_640x640.jpg?v=1597682255)
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| _THÔNG SỐ KỸ THUẬT: | |
|---|---|
| Copper Conductor Size (kcmil) | 17 |
| Copper Conductor Size (AWG) | #8 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Stud Hole Size (In.) | 42.95 |
| Stud Hole Size (mm) | 9.5 |
| Barrel Type | Short Barrel Length with Inspection Window |
| Barrel Length (mm) | 10.7 |
| Barrel Length (In.) | 0.42 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.6 |
| Tongue Width (mm) | 15.2 |
| Tongue Angle | 90° |
| Tongue Thickness (mm) | 1.3 |
| Tongue Thickness (In.) | 0.05 |
| Overall Length (mm) | 30.7 |
| Overall Length (In.) | 1.21 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Color Code | Red |
| Panduit Die Index Number | P21 |
| Burndy Die Index Number | 49 |
| Wire Strip Length (mm) | 12.7 |
| Wire Strip Length (In.) | 42,767 |
| Sub Brand | Pan-Lug |
| Part Features | Tin plated,color coded barrel,inspection window,short barrel for limited space apps,NEBS level 3. |
