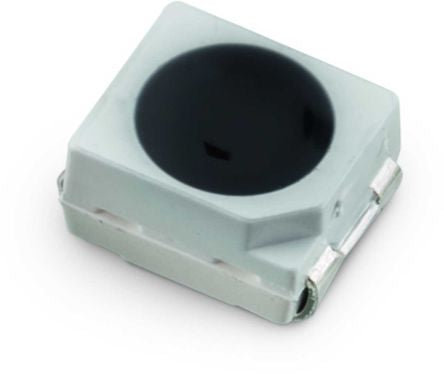

1541411NEA210 Wurth Elektronik, WL-STTB 120 ° IR Phototransistor, Surface Mount 2-Pin 3528 package [1541411NEA210]; 184-7215
0₫
Mã kho: 1847215
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Spectrums Detected | Infrared |
| Number of Channels | 1 |
| Maximum Dark Current | 100 (Collector Emitter)nA |
| Angle of Half Sensitivity | 120 ° |
| Polarity | NPN |
| Number of Pins | 2 |
| Mounting Type | Surface Mount |
| Package Type | 3528 |
| Dimensions | 3.5 x 2.8 x 1.9mm |
| Collector Current | 20mA |
| Series | WL-STTB |
| Spectral Range of Sensitivity | 700 → 1100 nm |
| Output Signal Type | PLCC |
| Width | 2.8mm |
| Maximum Wavelength Detected | 1100nm |
| Length | 3.5mm |
| Collector Emitter Voltage | 35V |
| Minimum Wavelength Detected | 700nm |
| Emitter Collector Voltage | 5V |
| Height | 1.9mm |
