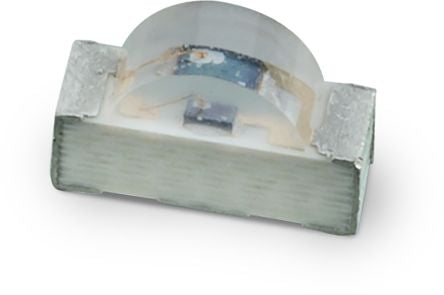

1541141NAA570 Wurth Elektronik, WL-STSW 150 ° IR + Visible Light Phototransistor, Surface Mount 2-Pin 1104 package [1541141NAA570]; 184-7255
0₫
Mã kho: 1847255
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Spectrums Detected | Infrared, Visible Light |
| Number of Channels | 1 |
| Maximum Dark Current | 100 (Collector Emitter)nA |
| Angle of Half Sensitivity | 150 ° |
| Polarity | NPN |
| Number of Pins | 2 |
| Mounting Type | Surface Mount |
| Package Type | 1104 |
| Dimensions | 3 x 1 x 2.02mm |
| Collector Current | 20mA |
| Width | 1mm |
| Collector Emitter Voltage | 35V |
| Emitter Collector Voltage | 5V |
| Length | 3mm |
| Series | WL-STSW |
| Minimum Wavelength Detected | 400nm |
| Height | 2.02mm |
| Maximum Wavelength Detected | 1100nm |
| Spectral Range of Sensitivity | 400 → 1100 nm |
