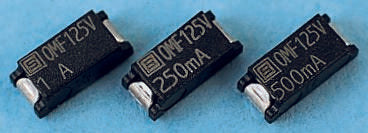

Schurter 250mA F Surface Mount Fuse, 125V ac/dc [3404.0006.11]; 131-583
by Schurter
0₫
Mã kho: 131583
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Current Rating | 250 mA |
| Voltage Rating | 125 V ac/dc |
| Length | 7.4mm |
| Width | 3.1mm |
| Height | 2.6mm |
| Dimensions | 7.4 x 3.1 x 2.6mm |
| Fuse Speed | F |
| Body Material | Thermoplastic |
| Breaking Capacity at Maximum Voltage Rating | 100 A @ 125 V ac/dc |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
| Terminal Material | Tin Plated Copper Alloy |
| Operating Temperature Range | -55 → +125 °C |
