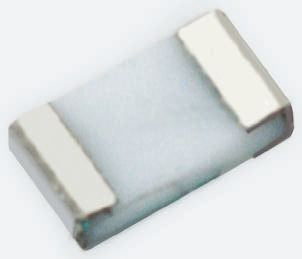

RS PRO 2.5A T Non-Resettable Surface Mount Fuse, 63V ac/dc; 764-9447
by RS PRO
0₫
Mã kho: 7649447
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Current Rating | 2.5 A |
| Voltage Rating | 63 V ac/dc |
| Length | 1.6mm |
| Width | 0.8mm |
| Height | 0.48mm |
| Dimensions | 1.6 x 0.8 x 0.48mm |
| Fuse Speed | T |
| Body Material | FR4 Board |
| Breaking Capacity at Maximum Voltage Rating | 100 A @ 63 V ac/dc |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
| Terminal Material | Copper, Tin |
| Operating Temperature Range | -55 → +125 °C |
| Resistance | 14mΩ |
