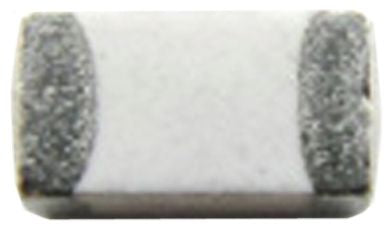

Littelfuse 500mA Surface Mount Fuse, 32V dc [0603SFV050F/32-2]; 867-5150
by Littelfuse
0₫
Mã kho: 8675150
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Current Rating | 500 mA |
| Voltage Rating | 32 V dc |
| Length | 1.75mm |
| Width | 0.95mm |
| Height | 0.95mm |
| Dimensions | 1.75 x 0.95 x 0.95mm |
| Body Material | Glass Ceramic |
| Breaking Capacity at Maximum Voltage Rating | 50 A @ 32 V dc |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
| Terminal Material | Silver |
| Resistance | 57mΩ |
| Operating Temperature Range | -55 → +125 °C |
| Series | 0603SFP200F/32-2 |
