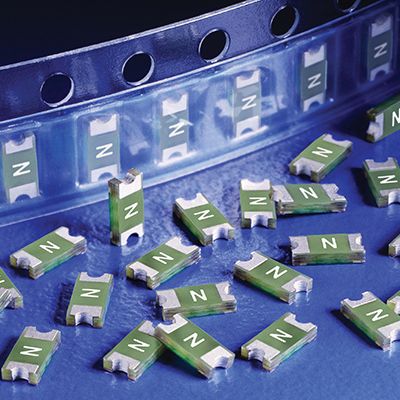

Littelfuse 120mA F Surface Mount Fuse, 125V [0466.125NRHF]; 174-0903
by Littelfuse
0₫
Mã kho: 1740903
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Current Rating | 120 mA |
| Voltage Rating | 125 V |
| Length | 3.17mm |
| Width | 1.52mm |
| Height | 0.58mm |
| Package Size | 1206 |
| Dimensions | 3.17 x 1.52 x 0.58mm |
| Fuse Speed | F |
| Body Material | Advanced High Temperature Substrate |
| Breaking Capacity at Maximum Voltage Rating | 50 A @ 125 V ac/dc |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +90°C |
| Terminal Material | Tin Over Nickel Over Copper |
| Resistance | 3.92Ω |
| Operating Temperature Range | -55 → +90 °C |
| Series | 466 |
