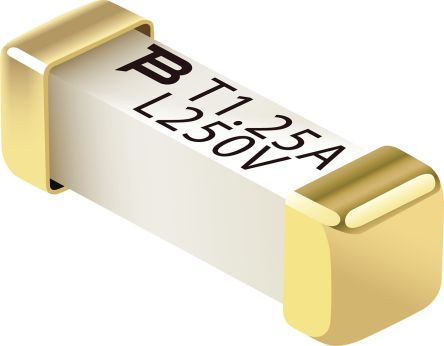

Singlfuse 3812 time-lag 250V AC 1.25A [SF-3812SP125T-2]; 186-0328
by Bourns
0₫
Mã kho: 1860328
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Current Rating | 1.25 A |
| Voltage Rating | 250 V ac |
| Length | 10.1mm |
| Width | 3.1mm |
| Height | 3.1mm |
| Dimensions | 10.1 x 3.1 x 3.1mm |
| Fuse Speed | F |
| Body Material | Ceramic |
| Breaking Capacity at Maximum Voltage Rating | 200 A @ 280 V ac |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
| Terminal Material | Brass |
| Operating Temperature Range | -55 → +125 °C |
| Series | SF |
| Resistance | 105mΩ |
