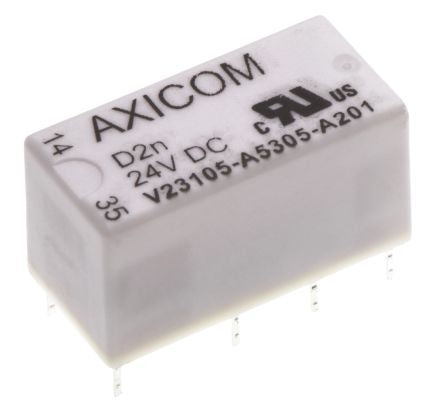

TE Connectivity DPDT Non-Latching Relay PCB Mount, 24V dc Coil [V23105A5305A201]; 282-5946
0₫
Mã kho: 2825946
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Coil Voltage | 24 V dc |
Coil Resistance | 2.88 kΩ |
Contact Configuration | DPDT |
Mounting Type | PCB Mount |
Switching Current | 3A |
Terminal Type | Through Hole |
Number of Poles | 2 |
Series | D2n |
Length | 20.2mm |
Height | 11mm |
Maximum Switching Power AC | 125 VA |
Maximum Switching Power DC | 60 W |
Depth | 10mm |
