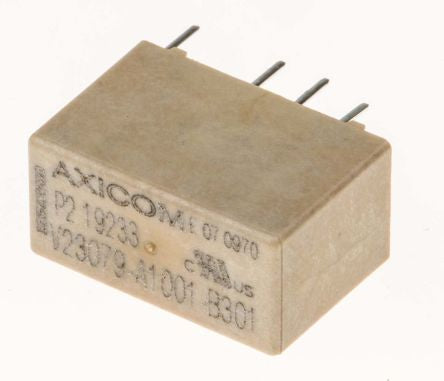

TE Connectivity DPDT Non-Latching Relay PCB Mount, 5V dc Coil, 5 A [V23079A1001B301]; 135-4739
0₫
Mã kho: 1354739
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 5 V dc |
| Coil Resistance | 178 Ω |
| Contact Configuration | DPDT |
| Mounting Type | PCB Mount |
| Switching Current | 5A |
| Terminal Type | Through Hole |
| Number of Poles | 2 |
| Depth | 7.2mm |
| Maximum Switching Power DC | 60 W |
| Maximum Switching Power AC | 62.5 VA |
| Length | 14.5mm |
| Height | 9.8mm |
| Series | Axicom P2 |
