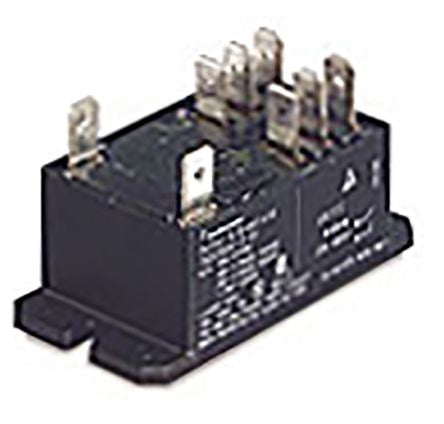

TE Connectivity DPNO Non-Latching Relay Panel Mount, 18V dc Coil, 40 A [T92S7D22-18]; 864-0050
0₫
Mã kho: 8640050
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 18 V dc |
| Coil Power | 1.7W |
| Coil Resistance | 197 Ω |
| Isolation Coil To Contact | 4kV rms |
| Contact Configuration | DPNO |
| Mounting Type | Panel Mount |
| Switching Current | 40A |
| Terminal Type | Quick Connect |
| Number of Poles | 2 |
| Maximum Switching Voltage AC | 277V |
| Height | 26.42mm |
| Length | 68.58mm |
| Series | T92 |
| Depth | 34.54mm |
