TE Connectivity DPNO Non-Latching Relay Flange Mount, 24V ac Coil, 30 A [T92P7A22-24=T92]; 680-2580
0₫
Mã kho: 6802580
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 24 V ac |
| Coil Resistance | 36.6 Ω |
| Contact Configuration | DPNO |
| Mounting Type | Flange Mount |
| Switching Current | 30A |
| Terminal Type | Quick Connect |
| Number of Poles | 2 |
| Series | T92 |

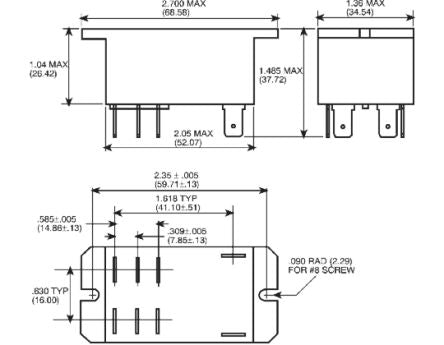

| Length | 68.58mm |
| Height | 37.97mm |
| Depth | 34.54mm |
