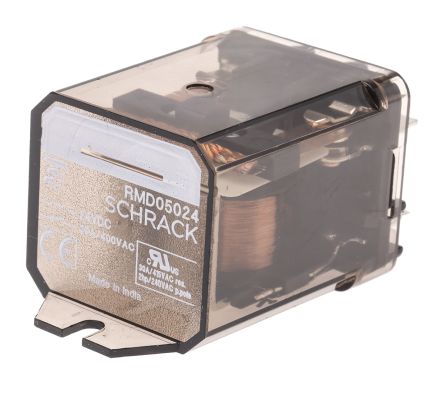

TE Connectivity SPNO Non-Latching Relay Panel Mount, 24V dc Coil, 30 A [RMD05024 1393146-9]; 376-919
0₫
Mã kho: 376919
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 24 V dc |
| Coil Resistance | 475 Ω |
| Contact Configuration | SPNO |
| Mounting Type | Panel Mount |
| Switching Current | 30A |
| Terminal Type | Quick Connect |
| Number of Poles | 1 |
| Maximum Switching Power AC | 7.5 kVA |
| Series | RMD |
| Depth | 35.5mm |
| Height | 73.5mm |
| Length | 38.5mm |
