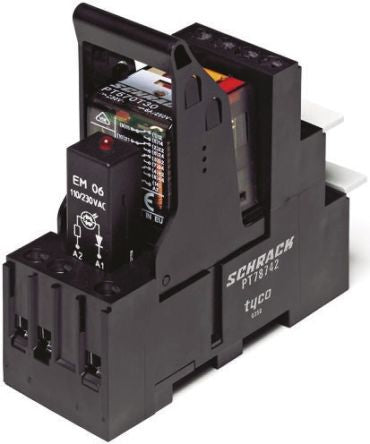

TE Connectivity 4PDT Non-Latching Relay DIN Rail, 115V ac Coil, 6 A [PT5S7SB5 1415366-1]; 534-9596
0₫
Mã kho: 5349596
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 115 V ac |
| Coil Power | 1W |
| Coil Resistance | 4.845 kΩ |
| Contact Configuration | 4PDT |
| Mounting Type | DIN Rail |
| Switching Current | 6A |
| Terminal Type | Screw |
| Number of Poles | 4 |
| Depth | 27mm |
| Series | PT |
| Maximum Switching Power AC | 1.5 kVA |
| Height | 58mm |
| Length | 73.5mm |
