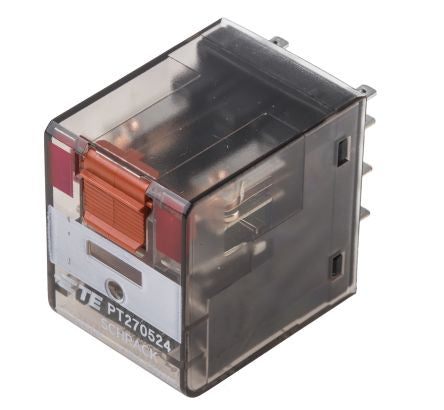

TE Connectivity DPDT Non-Latching Relay PCB Mount, 24V Coil, 12 A [PT270524 4-1419111-8]; 333-9935
0₫
Mã kho: 3339935
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 24 V ac |
| Coil Resistance | 192 Ω |
| Contact Configuration | DPDT |
| Mounting Type | PCB Mount |
| Switching Current | 12A |
| Terminal Type | Quick Connect |
| Number of Poles | 2 |
| Series | PT |
| Maximum Switching Power AC | 3 kVA |
| Height | 35mm |
| Length | 28mm |
| Depth | 22.5mm |
