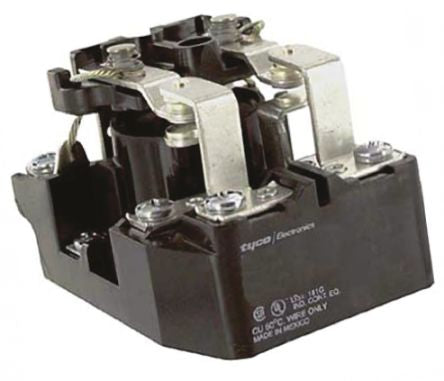

TE Connectivity DPDT Non-Latching Relay Chassis Mount, 12V dc Coil, 20 A [PRD-11DH0-12 4-1393127-7]; 782-1637
0₫
Mã kho: 7821637
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 12 V dc |
| Coil Power | 9.8W |
| Coil Resistance | 71 Ω |
| Contact Configuration | DPDT |
| Mounting Type | Chassis Mount |
| Switching Current | 20A |
| Terminal Type | Screw |
| Number of Poles | 2 |
| Maximum Switching Voltage DC | 125V dc |
| Length | 63.8 mm, 85.73 mm |
| Series | PRD |
| Depth | 63.8mm |
| Height | 63.5mm |
