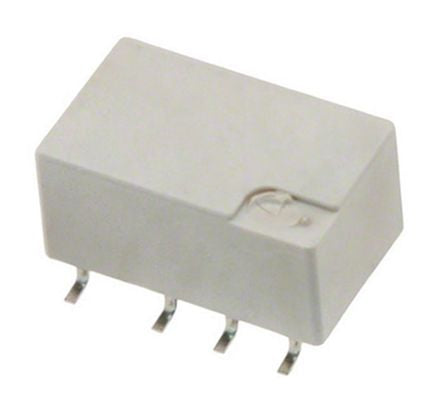

TE Connectivity DPDT Non-Latching Relay PCB Mount, 4.5V dc Coil, 2 A Non-Latching Relay [3-1462037-1]; 168-0678
0₫
Mã kho: 1680678
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 4.5 V dc |
| Coil Power | 100mW |
| Coil Resistance | 203 Ω |
| Isolation Coil To Contact | 1.8kV rms |
| Contact Configuration | DPDT |
| Mounting Type | PCB Mount |
| Switching Current | 2A |
| Terminal Type | PCB Pin |
| Number of Poles | 2 |
| Maximum Switching Voltage AC | 250V |
| Maximum Switching Voltage DC | 220V |
| Length | 10mm |
| Series | IM |
| Height | 5.65mm |
| Maximum Switching Power AC | 62.5 VA |
| Maximum Switching Power DC | 60 W |
| Standards Met | UL |
| Depth | 6mm |
