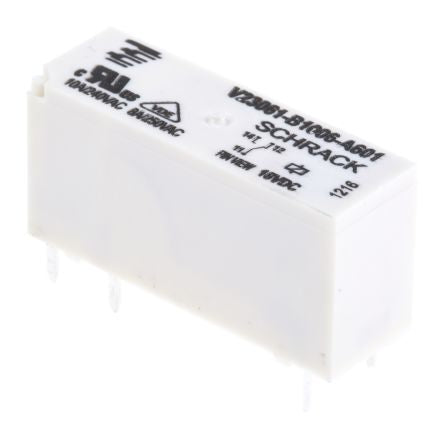

TE Connectivity SPDT Non-Latching Relay PCB Mount, 18V dc Coil, 8 A [1-1393223-5]; 745-5781
0₫
Mã kho: 7455781
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 18 V dc |
| Coil Power | 223mW |
| Coil Resistance | 1.455 kΩ |
| Isolation Coil To Contact | 4kV rms |
| Contact Configuration | SPDT |
| Mounting Type | PCB Mount |
| Switching Current | 8A |
| Terminal Type | Through Hole |
| Number of Poles | 1 |
| Maximum Switching Voltage AC | 400V |
| Length | 30mm |
| Height | 15mm |
| Depth | 10mm |
| Maximum Switching Power AC | 2 kVA |
| Series | MSR |
