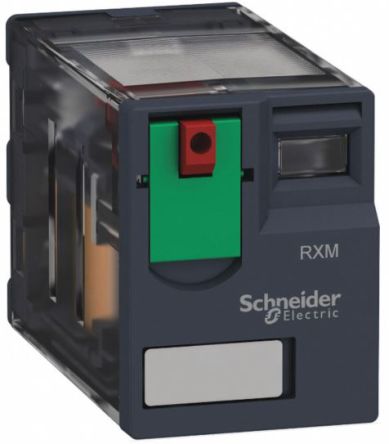

Schneider Electric 3PDT Non-Latching Relay Plug In, 110V dc Coil, 10 A [RXM3AB2FD]; 884-1519
0₫
Mã kho: 8841519
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 110 V dc |
| Coil Power | 900mW |
| Coil Resistance | 13.44 kΩ |
| Contact Configuration | 3PDT |
| Mounting Type | Plug In |
| Switching Current | 10A |
| Terminal Type | Plug In |
| Number of Poles | 3 |
| Maximum Switching Voltage AC | 250V |
| Depth | 47.7mm |
| Standards Met | CE, CSA, EN/IEC, GOST, Lloyd's, REACH, RoHS Compliant, UL |
| Maximum Switching Power AC | 2.5 kVA |
| Length | 21mm |
| Height | 27mm |
| Maximum Switching Power DC | 280 W |
