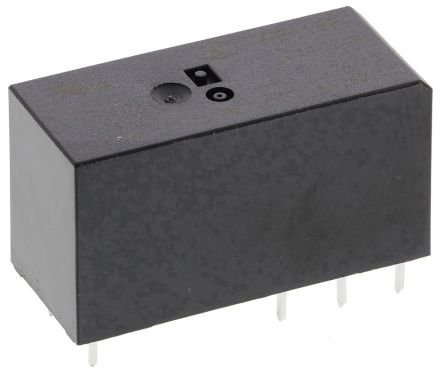

RS PRO DPDT Non-Latching Relay PCB Mount, 24V dc Coil, 8 A Miniature Power Relay; 800-4454
by RS PRO
0₫
Mã kho: 8004454
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 24 V dc |
| Coil Power | 400mW |
| Coil Resistance | 1.44 kΩ |
| Isolation Coil To Contact | 5kV ac |
| Contact Configuration | DPDT |
| Mounting Type | PCB Mount |
| Switching Current | 8A |
| Terminal Type | Through Hole |
| Number of Poles | 2 |
| Maximum Switching Voltage AC | 440V ac |
| Maximum Switching Voltage DC | 300V dc |
| Length | 29mm |
| Height | 15.7mm |
| Depth | 12.7mm |
| Maximum Switching Power AC | 2 kVA |
| Standards Met | CQC 02001001951, RoHS Compliant, UL E134517, VDE 116934 |
