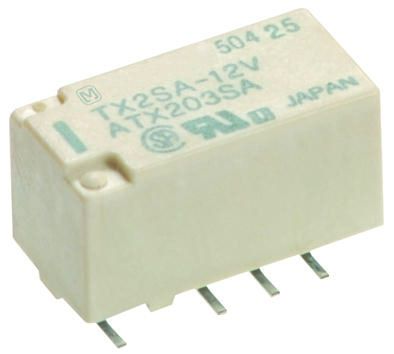

Panasonic DPDT Non-Latching Relay PCB Mount, 12V dc Coil, 2 A [TX2SA12]; 699-6348
by Panasonic
0₫
Mã kho: 6996348
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 12 V dc |
| Coil Power | 140mW |
| Coil Resistance | 1.028 kΩ |
| Isolation Coil To Contact | 2kV rms |
| Contact Configuration | DPDT |
| Mounting Type | PCB Mount |
| Switching Current | 2A |
| Terminal Type | Surface Mount |
| Maximum Switching Voltage DC | 220V dc |
| Length | 15mm |
| Maximum Switching Power DC | 60 W |
| Depth | 7.4mm |
| Height | 8.2mm |
