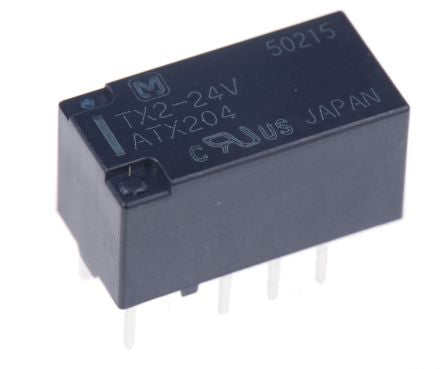

Panasonic DPDT Non-Latching Relay PCB Mount, 24V dc Coil, 2 A [TX2-24V]; 815-4928
by Panasonic
0₫
Mã kho: 8154928
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 24 V dc |
| Coil Power | 140mW |
| Coil Resistance | 4.114 kΩ |
| Isolation Coil To Contact | 2kV rms |
| Contact Configuration | DPDT |
| Mounting Type | PCB Mount |
| Switching Current | 2A |
| Terminal Type | PCB Pin |
| Maximum Switching Voltage DC | 220V |
| Length | 15mm |
| Depth | 7.4mm |
| Maximum Switching Power DC | 60 W |
| Height | 8.2mm |
