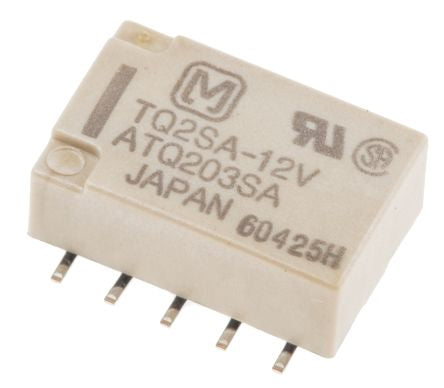

Panasonic DPDT Non-Latching Relay PCB Mount, 12V dc Coil, 2 A [TQ2SA12]; 217-2911
by Panasonic
0₫
Mã kho: 2172911
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 12 V dc |
| Contact Configuration | DPDT |
| Switching Current | 0.0833333333333333 |
| Mounting Type | PCB Mount |
| Terminal Type | Surface Mount |
| Coil Resistance | 1.028 kΩ |
| Application | General Purpose |
| Length | 14mm |
| Depth | 11.5mm |
| Height | 5.6mm |
| Dimensions | 14 x 11.5 x 5.6mm |
| Contact Material | Gold Plated |
| Maximum Operating Temperature | +85°C |
| Isolation Coil To Contact | 1.5kV rms |
| Minimum Operating Temperature | -40°C |
| Operating Temperature Range | -40 → +85°C |
| Maximum Switching Power DC | 60 W |
| Maximum Switching Power AC | 62.5 VA |
| Coil Power | 140mW |
| Life | 100000000 (Electrical) cycles |
