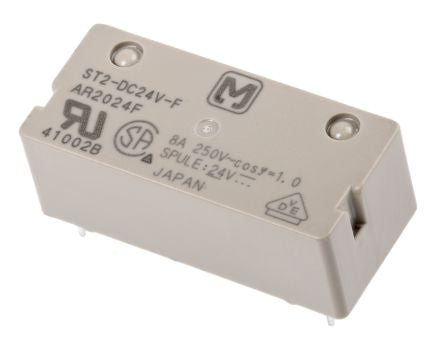

Panasonic DPNO Non-Latching Relay PCB Mount, 24V dc Coil, 8 A [ST224F]; 535-941
by Panasonic
0₫
Mã kho: 535941
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 24 V dc |
| Contact Configuration | DPNO |
| Mounting Type | PCB Mount |
| Switching Current | 0.333333333333333 |
| Terminal Type | Through Hole |
| Coil Resistance | 2.4 kΩ |
| Maximum Switching Voltage AC | 380V ac |
| Maximum Switching Voltage DC | 250V dc |
| Application | Power |
| Length | 31mm |
| Depth | 14mm |
| Height | 11mm |
| Dimensions | 31 x 14 x 11mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +60°C |
| Contact Material | Gold Plated |
| Maximum Switching Power AC | 3.04 kVA |
| Life | 100000 (Electrical) cycles, 10000000 (Mechanical) cycles |
| Special Features | Sealed |
| Operating Temperature Range | -40 → +60°C |
| Maximum Switching Power DC | 150 W |
| Coil Power | 240mW |
| Isolation Coil To Contact | 3.75kV rms |
