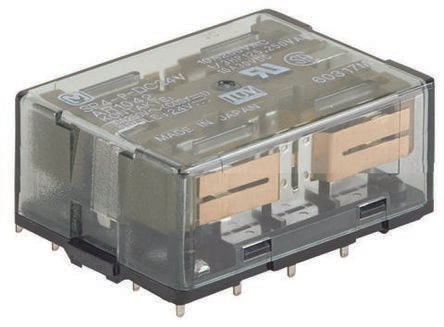

Panasonic 4PDT Non-Latching Relay PCB Mount, 5V dc Coil, 10 A [SP4-P-DC5V]; 171-8819
by Panasonic
0₫
Mã kho: 1718819
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 5 V dc |
| Contact Configuration | 4PDT |
| Mounting Type | PCB Mount |
| Switching Current | 0.416666666666667 |
| Terminal Type | Through Hole |
| Coil Resistance | 83 Ω |
| Application | Power |
| Length | 51mm |
| Depth | 25.6mm |
| Height | 22mm |
| Dimensions | 51 x 25.6 x 22mm |
| Contact Material | Silver Alloy |
| Minimum Operating Temperature | -50°C |
| Maximum Switching Power AC | 2.5 kVA |
| Operating Temperature Range | -50 → +60°C |
| Coil Power | 300mW |
| Maximum Switching Power DC | 300 W |
| Life | 50000000 (Electrical) cycles |
| Isolation Coil To Contact | 3kV rms |
| Maximum Operating Temperature | +60°C |
