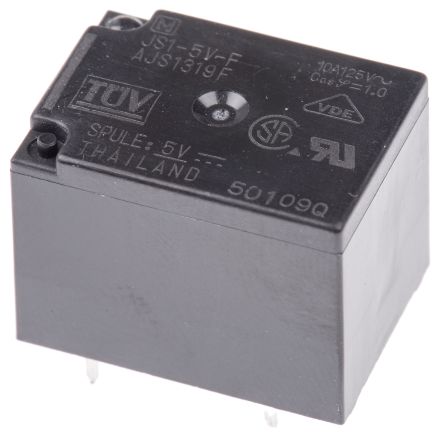

Panasonic SPDT Non-Latching Relay PCB Mount, 5V dc Coil, 5 A [JS1-5V-F]; 173-9257
by Panasonic
0₫
Mã kho: 1739257
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 5 V dc |
| Coil Power | 360mW |
| Coil Resistance | 69.4 Ω |
| Isolation Coil To Contact | 1.5kV rms |
| Contact Configuration | SPDT |
| Mounting Type | PCB Mount |
| Switching Current | 5A |
| Terminal Type | PCB Pin |
| Maximum Switching Voltage AC | 250V |
| Maximum Switching Voltage DC | 100V |
| Maximum Switching Power AC | 2.5 kVA |
| Depth | 16mm |
| Height | 16.04mm |
| Maximum Switching Power DC | 150 W |
| Length | 22mm |
