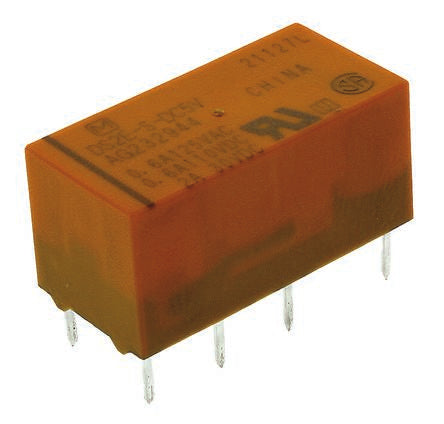

Panasonic DPDT Non-Latching Relay PCB Mount, 5V dc Coil, 3 A [DS2E-S-DC5V]; 127-8866
by Panasonic
0₫
Mã kho: 1278866
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 5 V dc |
| Coil Power | 200mW |
| Coil Resistance | 125 Ω |
| Isolation Coil To Contact | 1.5kV rms |
| Contact Configuration | DPDT |
| Mounting Type | PCB Mount |
| Switching Current | 3A |
| Terminal Type | Through Hole |
| Series | DS |
| Length | 20mm |
| Height | 9.9mm |
| Depth | 9.9mm |
| Maximum Switching Power DC | 60 W |
| Maximum Switching Power AC | 125 VA |
