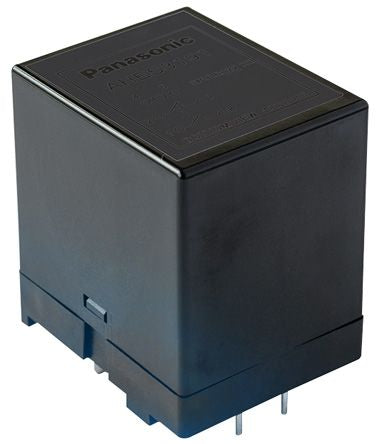

Panasonic DPNO Non-Latching Relay PCB Mount, 12V dc Coil, 35 A Non-Latching Relay [AHES3191]; 134-7923
by Panasonic
0₫
Mã kho: 1347923
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 12 V dc |
| Coil Power | 1.88W |
| Coil Resistance | 76.6 Ω |
| Isolation Coil To Contact | 2000Vrms |
| Contact Configuration | DPNO |
| Mounting Type | PCB Mount |
| Switching Current | 35A |
| Terminal Type | PCB Pin |
| Number of Poles | 2 |
| Maximum Switching Voltage AC | 480V |
| Maximum Switching Voltage DC | 110V |
| Depth | 36mm |
| Length | 30mm |
| Maximum Switching Power AC | 9.695 kVA |
| Height | 40mm |
| Standards Met | CUL, CULus, UL, VDE |
