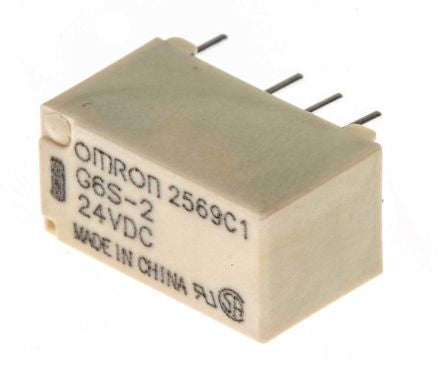

Omron DPDT Non-Latching Relay PCB Mount, 24V dc Coil, 2 A [G6S-2 24DC]; 326-6916
by Omron
0₫
Mã kho: 3266916
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 24 V dc |
| Coil Power | 200mW |
| Coil Resistance | 2.88 kΩ |
| Isolation Coil To Contact | 2kV ac |
| Contact Configuration | DPDT |
| Mounting Type | PCB Mount |
| Switching Current | 2A |
| Terminal Type | Through Hole |
| Number of Poles | 2 |
| Maximum Switching Voltage AC | 250V ac |
| Maximum Switching Voltage DC | 220V dc |
| Depth | 7.3mm |
| Maximum Switching Power DC | 60 W |
| Series | G6S |
| Maximum Switching Power AC | 62.5 VA |
| Length | 14.8mm |
| Height | 9.2mm |
