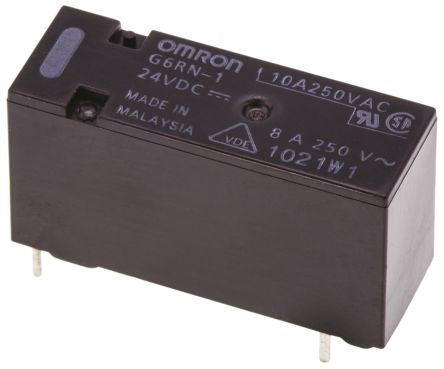

Omron SPDT Non-Latching Relay PCB Mount, 24V dc Coil, 8 A [G6RN-1 24DC]; 237-5378
by Omron
0₫
Mã kho: 2375378
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 24 V dc |
| Coil Power | 220mW |
| Coil Resistance | 2.62 kΩ |
| Isolation Coil To Contact | 4kV |
| Contact Configuration | SPDT |
| Mounting Type | PCB Mount |
| Switching Current | 8A |
| Terminal Type | Through Hole |
| Number of Poles | 1 |
| Maximum Switching Voltage AC | 250V ac |
| Length | 28.8mm |
| Series | G6RN |
| Maximum Switching Power AC | 2 kVA |
| Depth | 10.5mm |
| Maximum Switching Power DC | 150 W |
| Height | 15.3mm |
