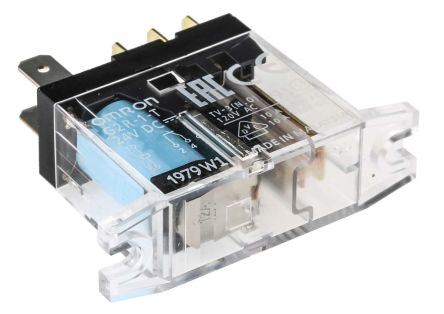

Omron SPDT Non-Latching Relay Panel Mount, 24V dc Coil, 10 A [G2R-1-T DC24]; 211-1275
by Omron
0₫
Mã kho: 2111275
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 24 V dc |
| Coil Power | 530mW |
| Coil Resistance | 1.1 kΩ |
| Isolation Coil To Contact | 5kV ac |
| Contact Configuration | SPDT |
| Mounting Type | Panel Mount |
| Switching Current | 10A |
| Terminal Type | Quick Connect |
| Number of Poles | 1 |
| Maximum Switching Power DC | 300 W |
| Height | 38mm |
| Series | G2R |
| Length | 45mm |
| Depth | 14mm |
| Maximum Switching Power AC | 2.5 kVA |
