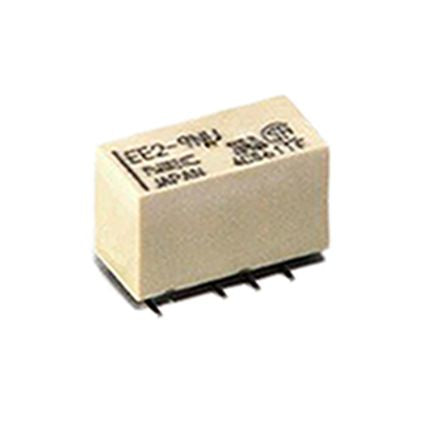

KEMET DPDT Non-Latching Relay Surface Mount, 5V dc Coil, 2 A Non-Latching Relay [EE2-5NU]; 870-5481
by KEMET
0₫
Mã kho: 8705481
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 5 V dc |
| Coil Power | 140mW |
| Coil Resistance | 178 Ω |
| Isolation Coil To Contact | 1.5kV ac |
| Contact Configuration | DPDT |
| Mounting Type | Surface Mount |
| Terminal Type | PCB Pin |
| Number of Poles | 1 |
| Maximum Switching Voltage AC | 250V |
| Maximum Switching Voltage DC | 220V |
| Maximum Switching Power DC | 60 W |
| Depth | 7.5mm |
| Standards Met | CSA, UL Recognized E73266 |
| Height | 9mm |
| Length | 15mm |
| Maximum Switching Power AC | 125 VA |
