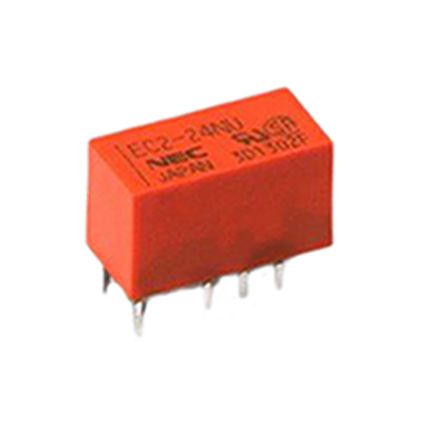

DPDT PCB Mount Non-Latching Relay 2 A, 24V dc For Use In Electronic Switching Systems, PBX, Telecommunications, [EC2-24NU]; 870-5365
by KEMET
0₫
Mã kho: 8705365
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 24 V dc |
| Contact Configuration | DPDT |
| Mounting Type | PCB Mount |
| Switching Current | 0.0833333333333333 |
| Maximum Switching Voltage AC | 250V |
| Maximum Switching Voltage DC | 220V |
| Maximum Switching Power DC | 60 W |
| Length | 15mm |
| Depth | 7.5mm |
| Height | 9.4mm |
| Dimensions | 15 x 7.5 x 9.4mm |
| Terminal Type | PCB Pin |
| Application | Electronic Switching Systems, PBX, Telecommunications, Terminal Equipment |
| Contact Material | Silver Alloy |
| Features | Compact and Lightweight, Low Magnetic Interference, Low Power Consumption |
| Operating Temperature Range | -40 → +85°C |
| Coil Resistance | 2.88 kΩ |
| Maximum Switching Power AC | 125 VA |
| Coil Power | 200mW |
| Electrical Life | 100000000 Operations |
| Isolation Coil To Contact | 1.5kV ac |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
| Standards Met | CSA, UL Recognized E73266 |
| Relay Switching Classification | Non-Latching Relay |
| Number of Poles | 1 |
