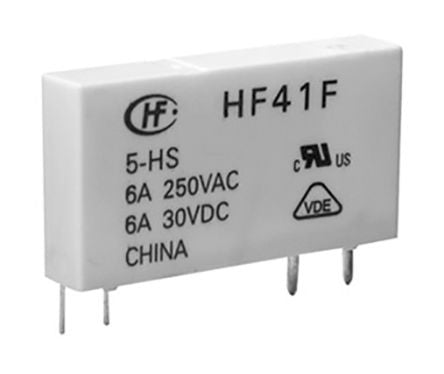

Hongfa Europe GMBH SPDT Non-Latching Relay PCB Mount, 60V dc Coil, 6 A Non-Latching Relay [HF41F-060-ZT]; 923-2619
0₫
Mã kho: 9232619
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 60 V dc |
| Coil Power | 210mW |
| Coil Resistance | 16.6 kΩ |
| Isolation Coil To Contact | 4kV ac |
| Contact Configuration | SPDT |
| Mounting Type | PCB Mount |
| Switching Current | 6A |
| Terminal Type | PCB Pin |
| Number of Poles | 1 |
| Maximum Switching Voltage AC | 400V |
| Maximum Switching Voltage DC | 125V |
| Maximum Switching Power DC | 180 W |
| Depth | 5mm |
| Standards Met | CQC File No. CQC09002035072, CULus File No. E133481 Recognized, VDE File No. 40020043 |
| Maximum Switching Power AC | 1.5 kVA |
| Length | 28mm |
| Height | 15mm |
