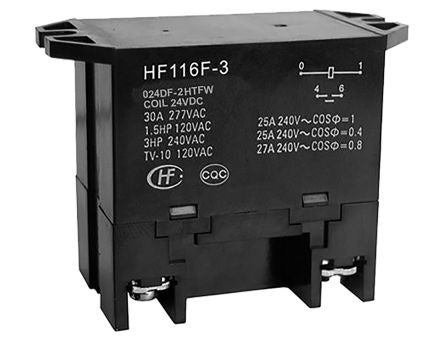

Hongfa Europe GMBH DPNO Non-Latching Relay Flange Mount, 24V dc Coil, 25 A Non-Latching Relay [HF116F-3/024DF-2HTFW]; 121-8063
0₫
Mã kho: 1218063
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 24 V dc |
| Coil Power | 1.9W |
| Coil Resistance | 300 Ω |
| Isolation Coil To Contact | 4kV ac |
| Contact Configuration | DPNO |
| Mounting Type | Flange Mount |
| Switching Current | 25A |
| Terminal Type | Screw |
| Number of Poles | 2 |
| Maximum Switching Voltage AC | 277V |
| Maximum Switching Power AC | 6.925 kVA |
| Depth | 32.9mm |
| Standards Met | CQC, CULus, TUV, UL |
| Length | 68mm |
| Height | 51mm |
