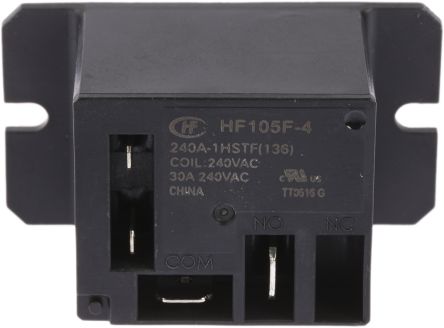

Hongfa Europe GMBH SPNO Non-Latching Relay Flange Mount, 240V ac Coil, 30 A Non-Latching Relay [HF105F-4/240A1HSTF]; 121-8073
0₫
Mã kho: 1218073
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 240 V ac |
| Coil Power | 2W |
| Coil Resistance | 13.49 kΩ |
| Isolation Coil To Contact | 2.5kV ac |
| Contact Configuration | SPNO |
| Mounting Type | Flange Mount |
| Switching Current | 30A |
| Terminal Type | Quick Connect |
| Number of Poles | 1 |
| Maximum Switching Voltage AC | 277V |
| Maximum Switching Voltage DC | 28V |
| Maximum Switching Power DC | 560 W |
| Depth | 27.8mm |
| Standards Met | CULus |
| Maximum Switching Power AC | 7.2 kVA |
| Length | 50mm |
| Height | 27.2mm |
