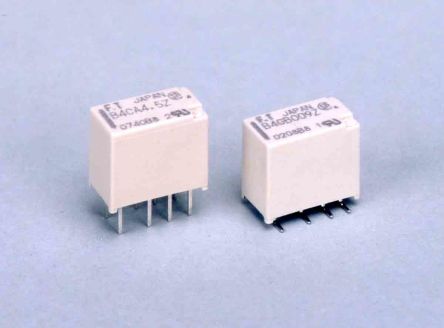

Low Signal Relays - PCB Low Signal Relay [FTR-B4CA4.5Z]; 195-8073
by Fujitsu
0₫
Mã kho: 1958073
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 4.5 V dc |
| Coil Power | 140mW |
| Coil Resistance | 145 O |
| Isolation Coil To Contact | 2.5kV |
| Contact Configuration | DPDT |
| Mounting Type | PCB Mount |
| Terminal Type | PCB Pin |
| Number of Poles | 2 |
| Maximum Switching Voltage AC | 250V ac |
| Maximum Switching Voltage DC | 220V dc |
| Height | 9.3mm |
| Length | 10.9mm |
| Maximum Switching Power AC | 62.5 VA |
| Depth | 6mm |
| Maximum Switching Power DC | 30 W |
| Series | FTR-B4 |
