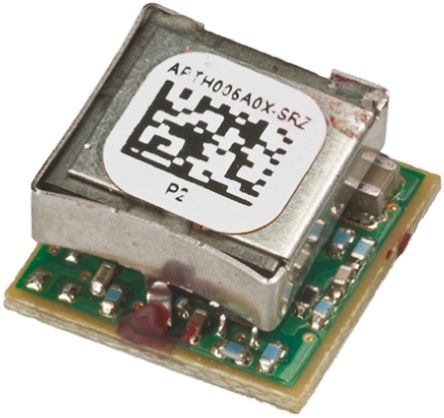

Non-Isolated DC-DC Converter 4.5 → 14V dc Input, 0.59 → 5.5V dc Output, 6A [APXS006A0X-SRZ]; 715-8566
0₫
Mã kho: 7158566
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Input Voltage Range | 4.5 → 14 V dc |
Output Voltage | 0.59 → 5.5V dc |
Output Current | 6A |
Power Rating | 33W |
Mounting Type | Surface Mount |
Number of Outputs | 1 |
Length | 12.2mm |
Width | 12.2mm |
Depth | 7.25mm |
Efficiency | 0.936 |
Minimum Temperature | -40°C |
Maximum Temperature | +85°C |
Ripple And Noise | 100mV Pk-Pk |
Load Regulation | 10mV |
Weight | 2g |
Line Regulation | ±0.4% |
MTBF | 22280045h |
Series | Pico TLynx |
